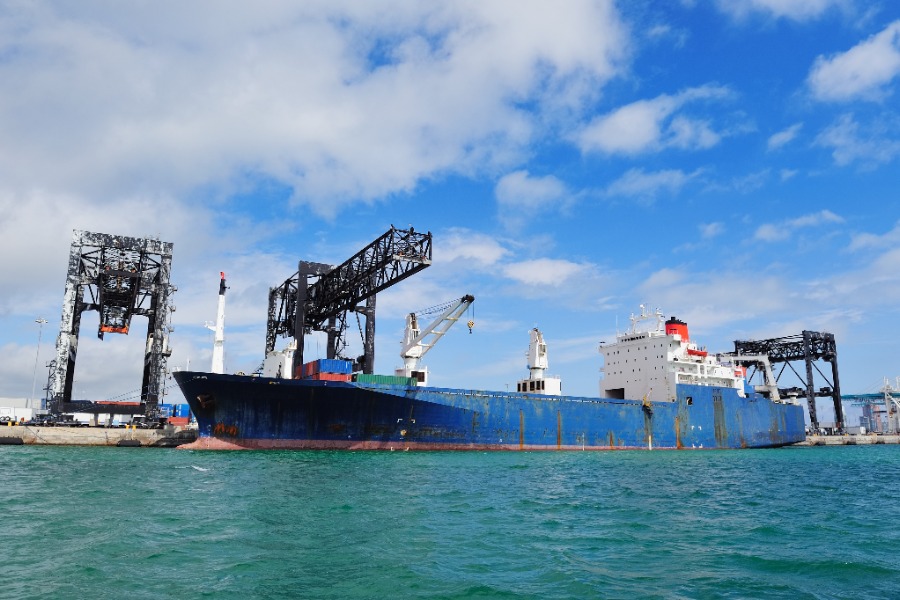

Sea Freight
Sea shipping requires more than just ships, because it must take care of documents, coordination and tracking must run neatly. Kune Bali Cargo is ready to handle the entire process until the delivery remains smooth from the beginning until it arrives at the destination.
We provide FCL and LCL services with flexible schedules, diverse ship options, and include stable space availability for a wide range of shipping needs.
Our services include:
- Consolidation of exports and imports by sea
- Air–sea combination shipping
- Door to door service
- Customs and document management
- LCL & FCL Consolidation
- Advanced warehousing, distribution, and delivery
- Packaging at the original location
- Multimodal transport
- Shipment and supply chain tracking system
We ensure that every shipment is more efficient, safe, and easy to monitor during the journey with an integrated system.
Sea Freight Container Sizing & Specifications
20ft General Purpose Container
Dimensions: 20' x 8' x 8'6"
Internal Dimensions
| Specification | Length | Width | Height |
|---|---|---|---|
| Inside | 5.882 m | 2.332 m | 2.332 m |
| Door Opening | – | 2.332 m | 2.261 m |
Weight Capacity
| Specification | Weight |
|---|---|
| Max Gross Weight | 24,000 kg / 30,480 kg |
| Tare Weight | 2,280 kg |
| Max Payload | 21,720 kg / 28,200 kg |
Internal Capacity: 33.2 m³

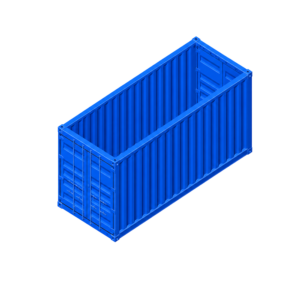

20ft Open Top Container
Dimensions: 20' x 8' x 8'6"
Internal Dimensions
| Specification | Length | Width | Height |
|---|---|---|---|
| Inside | 5.890 m | 2.311 m | 2.340 m |
| Door Opening | – | 2.286 m | 2.184 m |
Weight Capacity
| Specification | Weight |
|---|---|
| Max Gross Weight | 30,480 kg |
| Tare Weight | 2,260 kg |
| Max Payload | 28,200 kg |
Internal Capacity: 32.7 m³

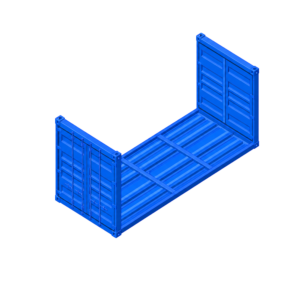

20ft Flat Rack Container
Dimensions: 20' x 8' x 8'6"
Internal Dimensions
| Specification | Length | Width | Height |
|---|---|---|---|
| Inside | 5.620 m | 2.200 m | 2.219 m |
Weight Capacity
| Specification | Weight |
|---|---|
| Max Gross Weight | 34,000 kg |
| Tare Weight | 3,000 kg |
| Max Payload | 31,000 kg |
Internal Capacity: 32.7 m³

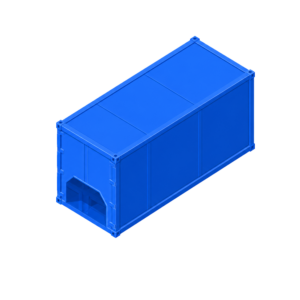

20ft Reefer Container
Dimensions: 20' x 8' x 8'6"
Internal Dimensions
| Specification | Length | Width | Height |
|---|---|---|---|
| Inside | 5.456 m | 2.294 m | 2.273 m |
| Door Opening | – | 2.290 m | 2.264 m |
Weight Capacity
| Specification | Weight |
|---|---|
| Max Gross Weight | 24,000 kg / 30,480 kg |
| Tare Weight | 2,600 kg / 3,190 kg |
| Max Payload | 20,840 kg / 27,610 kg |
Internal Capacity: 28.63 – 28.76 m³
Capacity to Load Line: 27.38 – 27.51 m³
40ft Container Specifications

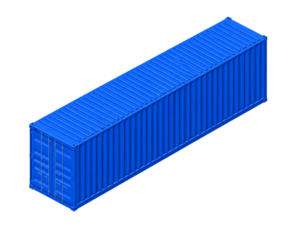

40ft General Purpose Container
Dimensions: 40' x 8' x 8'6"
Internal Dimensions
| Specification | Length | Width | Height |
|---|---|---|---|
| Inside | 12.022 m | 2.332 m | 2.385 m |
| Door Opening | – | 2.333 m | 2.260 m |
Weight Capacity
| Specification | Weight |
|---|---|
| Max Gross Weight | 30,480 kg |
| Tare Weight | 3,830 kg |
| Max Payload | 26,650 kg |
Internal Capacity: 67.7 m³

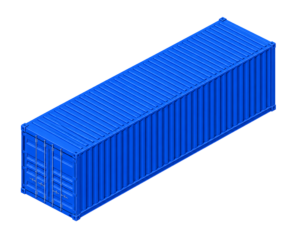

40ft High Cube Container
Dimensions: 40' x 8' x 9'6"
Internal Dimensions
| Specification | Length | Width | Height |
|---|---|---|---|
| Inside | 12.031 m | 2.350 m | 2.667 m |
| Door Opening | – | 2.336 m | 2.585 m |
Weight Capacity
| Specification | Weight |
|---|---|
| Max Gross Weight | 30,480 kg |
| Tare Weight | 3,980 kg |
| Max Payload | 26,500 kg |
Internal Capacity: 76.3 m³

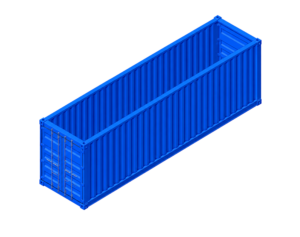

40ft Open Top Container
Dimensions: 40' x 8' x 8'6"
Internal Dimensions
| Specification | Length | Width | Height |
|---|---|---|---|
| Inside | 12.028 m | 2.348 m | 2.331 m |
| Door Opening | – | 2.337 m | 2.274 m |
Weight Capacity
| Specification | Weight |
|---|---|
| Max Gross Weight | 30,480 kg |
| Tare Weight | 3,980 kg |
| Max Payload | 26,500 kg |
Internal Capacity: 66.7 m³

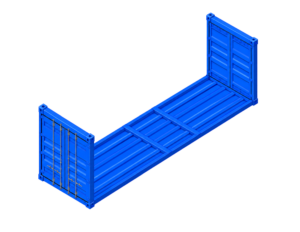

40ft Flat Rack Container
Dimensions: 40' x 8' x 8'6"
Internal Dimensions
| Specification | Length | Width | Height |
|---|---|---|---|
| Inside | 12.080 m | 2.438 m | 1.978 m |
Weight Capacity
| Specification | Weight |
|---|---|
| Max Gross Weight | 45,000 kg |
| Tare Weight | 5,400 kg |
| Max Payload | 39,600 kg |

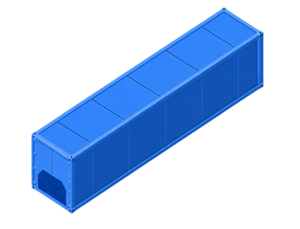

40ft Reefer Container
Dimensions: 40' x 8' x 8'6"
Internal Dimensions
| Specification | Length | Width | Height |
|---|---|---|---|
| Inside | 11.584 m | 2.294 m | 2.294 m |
| Door Opening | – | 2.284 m | 2.437 m |
Weight Capacity
| Specification | Weight |
|---|---|
| Max Gross Weight | 30,480 kg / 34,000 kg |
| Tare Weight | 4,270 kg / 4,760 kg |
| Max Payload | 25,805 kg / 29,675 kg |
Internal Capacity: 67.19 – 67.73 m³
Capacity to Load Line: 64.54 – 65.07 m³
Disclaimer
All sizing, weights, and specifications shown above are provided as a general guide only. Actual container dimensions and capacities may vary depending on carrier and manufacturer specifications. Please contact us for exact details based on your shipment requirements.
