Air Container Sizing & Specifications
AKE Container
| Specification | Details |
|---|---|
| Aircraft Types | All B747, A330, A380 |
| Deck Position | Lower Deck |
| Base Size | 1534 × 1562 mm |
| Height | 1620 mm |
| Roof Length | 2002 mm |
| Max Gross Weight | 1587 kg |
| Internal Volume | 4.5 cu m |
| External Volume | 4.8 cu m |
| Door Opening | 1427 × 1533 mm |
| Tare Weight | 70 – 79 kg |
AKH Container
| Specification | Details |
|---|---|
| Aircraft Types | A320 |
| Deck Position | Lower Deck |
| Base Size | 1534 × 1562 mm |
| Height | 1143 mm |
| Roof Length | 2438 mm |
| Max Gross Weight | 1000 kg |
| Internal Volume | 3.7 cu m |
| External Volume | 3.9 cu m |
| Door Opening | 1422 × 1090 mm |
| Tare Weight | 80 kg |
APP / AA2 Container
| Specification | Details |
|---|---|
| Aircraft Types | All, B747, B767, A330, A380 |
| Deck Position | Upper & Lower Deck |
| Base Size | 2235 × 3175 mm |
| Height | 1610 mm |
| Roof Length | 3175 mm |
| Max Gross Weight | 4626 kg |
| Internal Volume | 10.3 cu m |
| External Volume | 11.2 cu m |
| Door Opening | 2928 × 1474 mm |
| Tare Weight | 200 – 273 kg |
AMP Container
| Specification | Details |
|---|---|
| Aircraft Types | All, B747, B767, A330, A380 |
| Deck Position | Upper & Lower Deck |
| Base Size | 2438 × 3175 mm |
| Height | 1613 mm |
| Max Gross Weight | 5100 kg |
| Internal Volume | 14.4 cu m |
| External Volume | 14.8 cu m |
| Door Opening | 2428 × 1474 mm |
| Tare Weight | 265 kg |

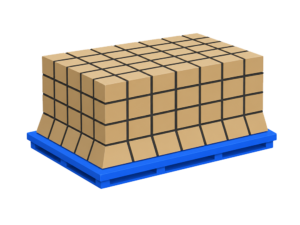

PAG Pallet
| Specification | Details |
|---|---|
| Aircraft Types | All, B747, B767, A330, A380 |
| Deck Position | Lower Deck |
| Base Size | 2235 × 3175 mm |
| Max Gross Weight | 4626 kg |
| Tare Weight | 11 kg |
PMC Pallet
| Specification | Details |
|---|---|
| Aircraft Types | All, B747, B767, A330, A380 |
| Deck Position | Lower Deck |
| Base Size | 2438 × 3175 mm |
| Max Gross Weight | 5100 kg |
| Tare Weight | 11 kg |
Disclaimer
All sizing, dimensions, and specifications shown above are provided as a general guide only. Actual container and pallet specifications may vary depending on airline, carrier, and aircraft configuration. Please contact us for exact details based on your shipment requirements.
